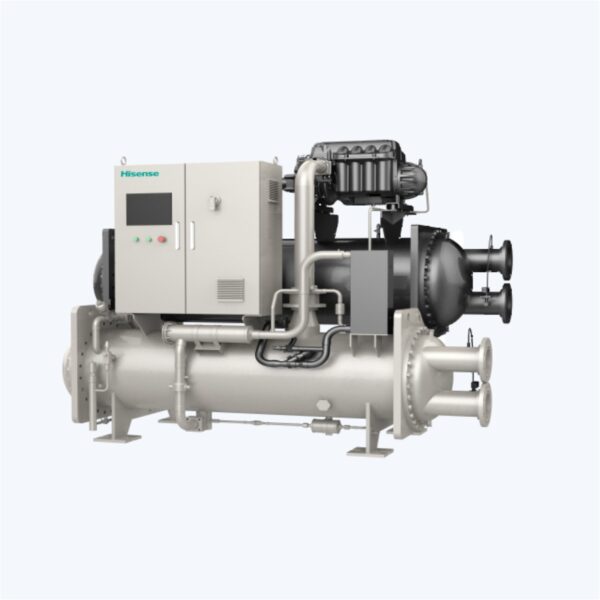

Hisense Inverter Magnetic Centrifugal Chiller HSCFVE-AH Series

Hisense latest self-developed inverter magnetic centrifugal chiller debuts with powerful and industry-leading features. It can be widely used in data centers, rail transit, supermarkets, hosptials, commercial complex, etc.

High-efficiency Magnetic Bearing Centrifugal Compressor

· No need of lubricating oil.

· Magnetic bearing technology with zero friction.

· High-speed direct drive without transmission loss, the efficiency over 97%.

· Two-stage compression technology with a wider operating range.

· Low vibration and low noise.



Magnetic Bearing

·One set of radial bearings and one set of axial bearings respectively arranged at the front and rear sides to form a NC magnetic bearing system.

·The high-quality position sensor can make sure accurate positioning of motor rotor running at ultra-high speed.

·No mechanical friction between the internal components inside the compressor, thus reducing frictional loss and keeping efficient operation all the time.

·No lubricating oil in the system, so there is no oil film influence on heat exchange, improving heat exchange efficiency greatly.

·No risk of bearing burning caused by oil loss, compared with the conventional centrifugal chiller.
